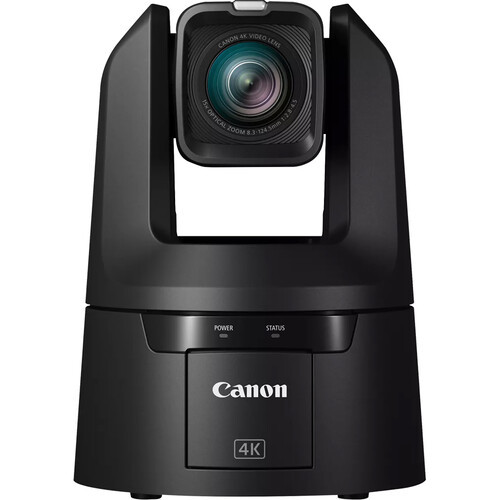

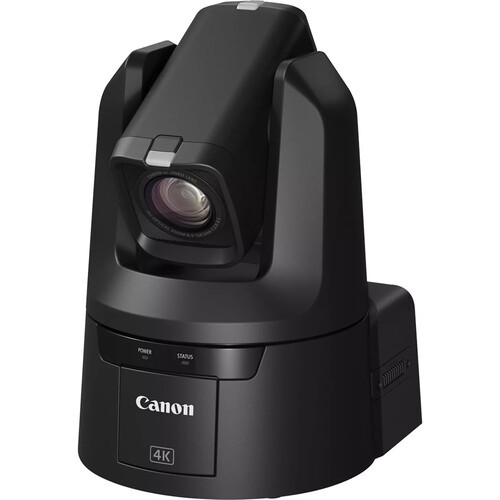

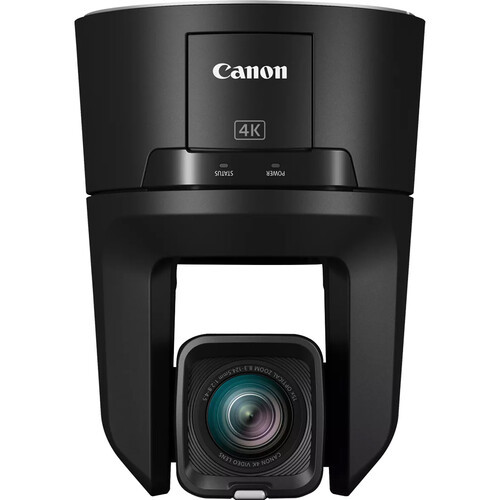

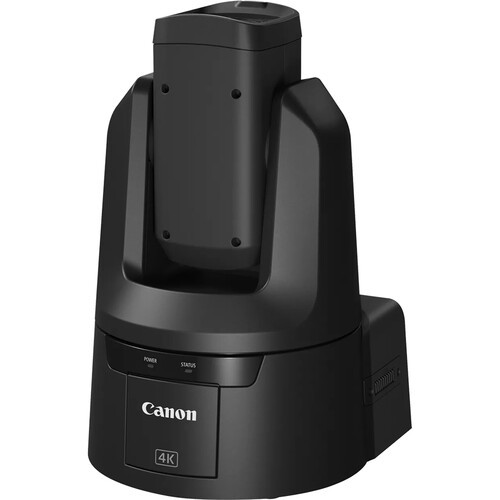

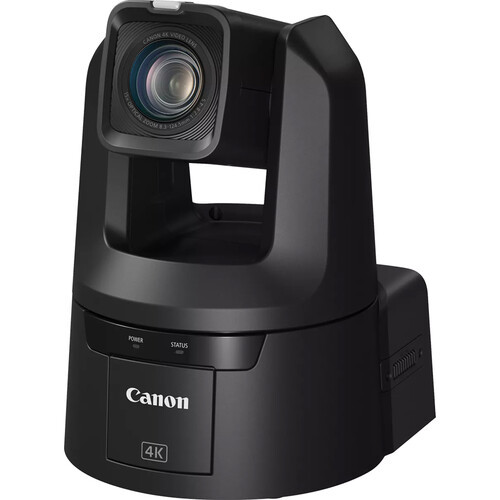

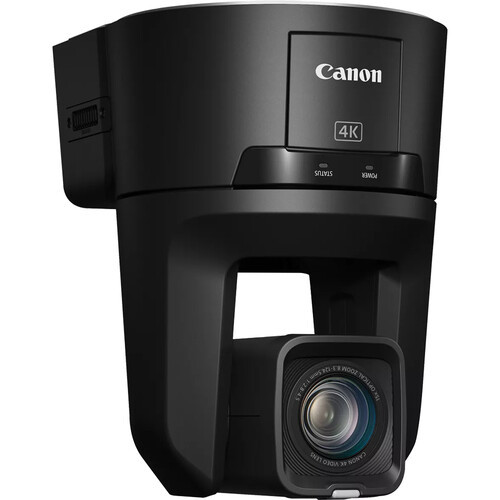

Canon CR-N500 Professional 4K NDI PTZ Camera with 15x Zoom (Satin Black)
- MPN:
- 4839C001
- UPC:
- 13803339451
- Brand
- Canon
- Shipping:
- Calculated at Checkout
Description
If you're working on a field or studio production with high-end cameras that can benefit from remotely controlled cameras with minimal operating crew, and you need more accurate camera-matching than a traditional PTZ camera, the satin black CR-N500 Professional 4K NDI PTZ Camera with 15x Zoom from Canon will fit right into your documentary shoot, event, streaming broadcast, reality show, or digital film production. The CR-N500 is designed to fit right into an existing multi-camera shoot, matching the color depth and visual look with its professional sensor and features so that postproduction camera matching and color correction is made easy.
The CR-N500 sports many resources of a high-resolution Canon camera or camcorder with features such as a 1" dual-pixel CMOS sensor, the Canon DIG!C DV6 image processor, scene modes, face-tracking, 15x zoom, 20x digital zoom, dual XLR / 3.5mm microphone input, and video recording up to UHD 4K. The camera also includes NDI|HX support without requiring a separate license, allowing you to drop the camera into your existing NDI network with minimal configuration. Other professional camera attributes of the N500 include genlock support, Canon Log 3 support, and built-in ND filters with clear, 1/4, 1/16, and 1/64 options.
Where the PTZ camera diverges from the Canon camcorders is in its remote options such as control via IP, RS-422 serial, IR, or Wi-Fi as well as HDMI or 3G-SDI video output. It can perform smooth, precision pan, tilt, and zoom movements with a speed range of 0.2 to 300° per second. Mic-level audio can be input via dual XLR inputs or via a 3.5mm mini-jack, and then embedded in the HDMI and 3G-SDI outputs, in your NDI|HX stream, or in RTP/RTMP/RTSP streaming output.
The camera can also be powered using PoE+ (Power-over-Ethernet) using its LAN port, so it can fit right into your existing PoE+ network without requiring the use of local power to save cabling. The camera supports wide dynamic range, minimum brightness of 1.5 lux, and its lens features a 35mm equivalent focal length of 25.5 to 382.5mm. The camera can utilize an external controller via RS-422 or Canon's proprietary XC IP protocol on a private, secure LAN, using the optional RC-IP100 PTZ controller. Or if you'd prefer to use Canon's camera control software, the free-to-download application can work on Windows OS, so you can control all the camera functions from a laptop or tablet. The software provides a 9x9 live view, control of up to 100 cameras, settings loading and configuration, and tally functions.
Key Features
1" CMOS Sensor
The 1" sensor allows for larger photosites compared to smaller-sized sensors found in other PTZ cameras, resulting in stunning images with less noise in low-light situations. The large sensor also exhibits a shallow depth of field at large apertures, producing blurred backgrounds in images, while Canon's DPAF tracks and keeps subjects in sharp focus. The CR-N500's DIG!C DV 6 imaging processor drives the high sensitivity (1.5 lux) and low-noise performance of the camera yielding amazing imagery in a variety of shooting conditions.
Canon DIG!C DV6 Processor
Dual-Pixel CMOS AF
Dual-Pixel Focus Guide
Face Detection and Tracking
Canon UHD 4K Lens
Built-In ND Filters
Optical-Shift Stabilization
Oversampling HD Processing
Smooth and Responsive Pan and Tilt Performance
Canon Log 3 Support
Log shooting is particularly effective for constantly shifting shooting sites such as unscripted productions and documentaries or sites with rapidly changing lighting conditions. Canon Log 3 is a gamma considering a simple grading by tightening the dark area to arrange the gradation, which retains the ease of use of Canon Log making the noise less visible.
Shooting in log allows the CR-N500 to more easily match the color and look of other cameras, especially those also shooting in log. This helps provide a more consistent look across the entire production.
Wide DR Gamma Supported
Equipped with Six Image-Quality Modes
Equipped with a Variety of Image-Quality Adjustment Functions
Easy Integration into IP Streaming
IP Multi-Stream Support
RTMP Streaming Protocol Supported
NDI|HX Live Video Production Support Protocol
Standard VISCA Protocol
The standard VISCA protocol is widely used in video production, broadcasting, and many other markets. The CR-N500 supports the standard VISCA protocol that is regarded as an industry standard and is suitable for operation within existing workflows.
Support for Canon XC protocol
Various Interfaces Supported for Multiple Environments
Genlock
2-Channel XLR Audio
Standard Serial RS-422
One-Person Operation
All-New Design
Equipped with Tally Lamps
Wireless Remote Controls Supported
Easy-to-Use Settings Page and Discovery Tool
Remote Camera Control Application
At a video production or broadcasting site, an operator can select a camera from the videos displayed on the "Connected Camera List", within the application and operate it from the "Camera Control Area" in the control panel of the software. The software is included and can be installed immediately without having to prepare a hardware controller in advance making it easy to use for the operator while creating an effective one-person operation.
In the Box
- Canon CR-N500 Professional 4K NDI PTZ Camera with 15x Zoom (Satin Black)
- IR Remote Control
- Remote Battery
- Safety Wire
- Safety Wire with Screw
- Ceiling Plate
- AC Adapter
- Power Cable
- Limited 3-Year Warranty
Canon CR-N500 Specs
| Image Sensor | 1-Chip 1" CMOS Sensor |
| Sensor Resolution | Actual: 13.4 Megapixel Effective: 8.29 Megapixel (3840 x 2160) |
| Gain | 6 to 33 dB |
| Minimum Illumination | 1.5 Lux |
| White Balance | 2000 to 15,000K |
| Shutter Speed | 1/3 to 1/2000 sec |
| Max Digital Zoom | 20x |
| Built-In ND Filter | Mechanical Filter Wheel with Clear, 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters |
| Optical Zoom Ratio | 15x |
| Focal Length | 8.3 to 124.5mm (35mm Equivalent Focal Length: 25.5 to 382.5mm) |
| Field of View | Horizontal: 5.7 to 73° Vertical: 3.2 to 45.2° |
| Maximum Aperture | f/2.8 to 4.5 |
| Minimum Focus Distance | Wide: 0.4" / 1.0 cm Telephoto: 23.6" / 60.0 cm |
| Image Stabilization | Optical |
| Focus Control | Autofocus Manual Focus |
| Broadcast System Compatibility | NTSC, PAL |
| Output Formats | HDMI: 3840 x 2160p at 23.98, 25, 29.97 fps 1920 x 1080p at 23.98, 25, 29.97, 50, 59.94 fps 1920 x 1080i at 50, 59.94 fps 1280 x 720p at 50, 59.94 fps SDI: 1920 x 1080p at 23.98, 25, 29.97, 50, 59.94 fps 1920 x 1080i at 50, 59.94 fps 1280 x 720p at 50, 59.94 fps RJ45: 3840 x 2160p at 29.97 fps 1920 x 1080p at 29.97, 59.94 fps 1280 x 720p at 29.97, 59.94 fps 640 x 360p at 29.97, 59.94 fps |
| Embedded Audio | HDMI/SDI |
| IP Streaming | RTMP, RTP, RTSP: 1080p, 720p, 360p at 29.97p, 59.94p, 60p |
| IP Multi-Stream Support | Simultaneous RTMP, RTP, RTSP: 1080p, 720p, 360p at 29.97p, 59.94p |
| Presets | 100 via IP, VISCA |
| Move Speed | Pan: 0.1 to 100°/sec Tilt: 0.21 to 100°/sec |
| Movement Range | Pan: 340° (-170 to 170°) Tilt: 130° (-30 to 90°) |
| Tally Light | Yes |
| Supported Control Protocols | Canon XC IR RS-422 VISCA |

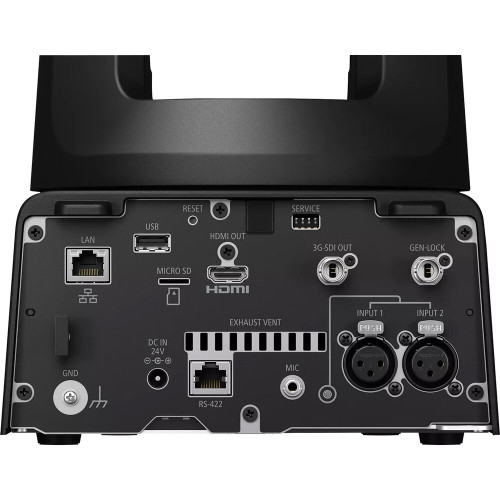

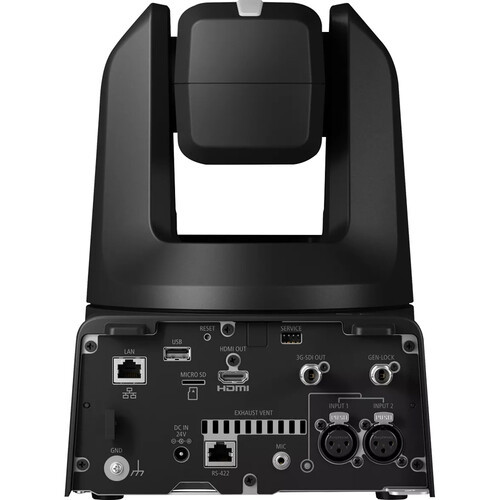

| Video Output Connectors | 1 x BNC (3G-SDI) Female 1 x HDMI Type A Female 1 x RJ45 (HX / NDI) Female |
| Audio I/O | 2 x 3-Pin XLR Mic Level Input 1 x 1/8" / 3.5 mm Stereo Mic Level Input |
| Control Interface | 1 x RJ45 (RS-422, VISCA) Input |
| Other I/O | 1 x USB Type-A Input 1 x BNC (Genlock) Input/Output |
| PoE Support | PoE+ 802.3at |
| Power Connectors | 1 x Barrel / Coaxial (24 VDC) |
| Power Consumption | PoE: 19.6 W Power Supply: 24 VDC 18.6 W |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 10 to 90% |
| Storage Humidity | 10 to 90% |
| Dimensions | 10.59 x 8.19 x 7.87" / 26.9 x 20.8 x 19.99 cm (Excluding Protrusions) |
| Weight | 9 lb / 4.1 kg |
| Package Weight | 14 lb |
| Box Dimensions (LxWxH) | 18.4 x 14.7 x 14.4" |
